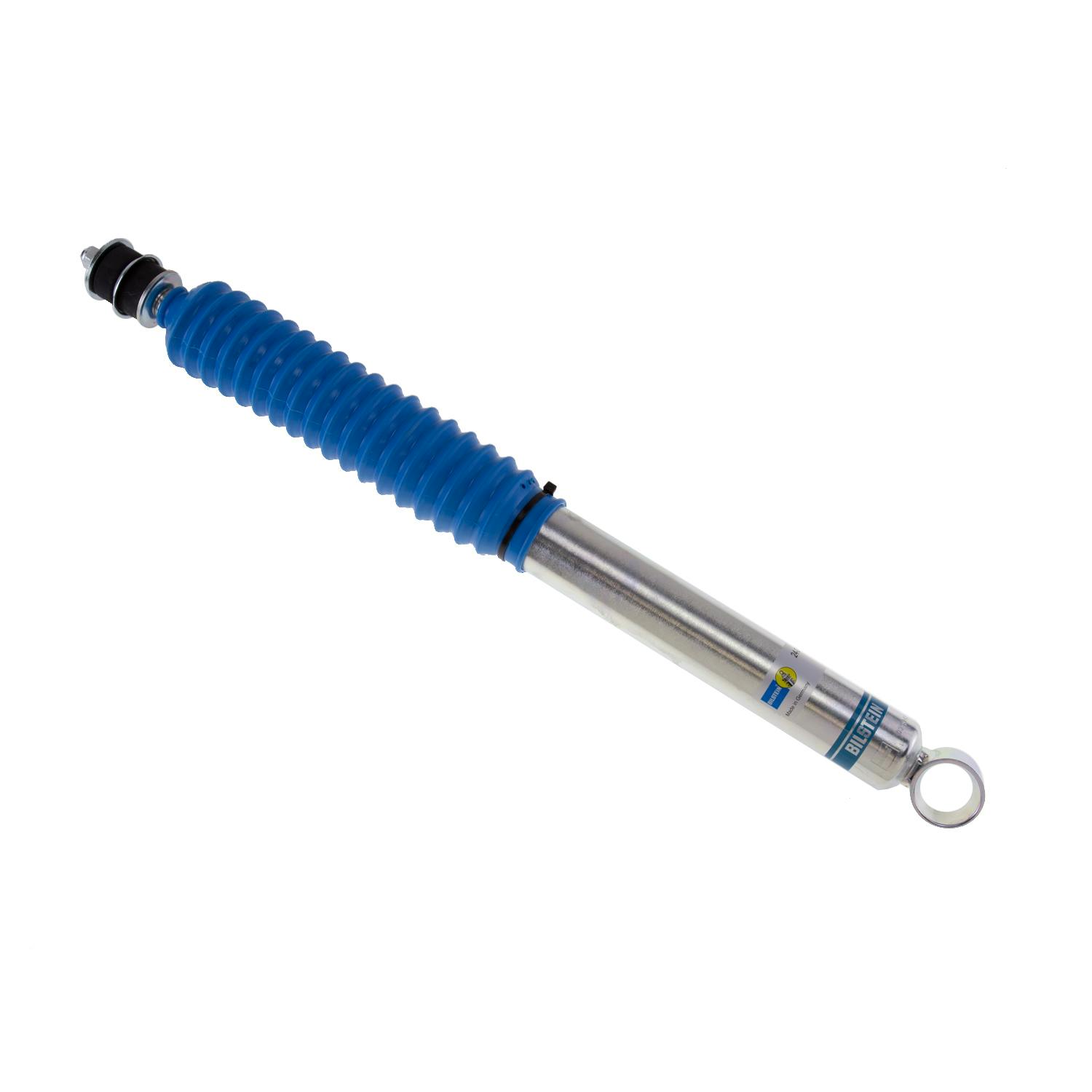

46mm Monotube Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
- 46mm monotube design ensures consistent, fade-free performance in all conditions
Application Summary:
| Year |
Make/Model |
| 1996-1997 |
Lexus LX450 |
| 1991-1997 |
Toyota Land Cruiser |
| Attributes |
| Adjustable Damping |
Non-Adjustable |
| Adjustable Rebound |
No |
| Body Design |
Smooth Body (Non-Coilover) |
| Body Diameter (ID) |
46mm |
| Body Diameter (OD) |
2.0 in. |
| Boot Included |
Blue Bellows |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (IN) |
14.94 |
| Collapsed Length (mm) |
379.5 |
| Compressed Length |
14.94 |
| Country of Origin (Primary) |
DE |
| Emission Code |
Legal US |
| Extended Length |
24.59 |
| Extended Length (IN) |
24.59 |
| Extended Length (mm) |
624.5 |
| FAB |
46mm monotube design ensures consistent, fade-free performance in all conditions, Patented digressive valving instantly reacts to changing surface conditions |
| Finish |
Zinc Plated |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8708800050 |
| Hazardous Material Code |
N |
| Internal Design |
Monotube |
| Life Cycle Status Code |
Available to Order |
| Lower Mount Type |
Eye 19mm |
| Mounting Hardware Included |
Yes |
| PartType |
Shocks / Struts |
| Piston Diameter |
46mm |
| Reservoir |
No |
| SDR Required Flag |
Y |
| SDS Sheet Number |
USA SDS_Shock_Air Spring_V2_EN.pdf |
| Segment |
Light Truck |
| Series |
B8 5100 |
| Shaft Diameter |
14mm |
| Spring Max Travel (IN) |
9.65 |
| Spring Seat Included |
No |
| Stroke/Travel Length (IN) |
9.65 |
| Stroke/Travel Length (mm) |
245.1 |
| Travel Length |
9.65 |
| Upper Mount Type |
Stem |
| GTIN |
00651860741994 |
